WHN200 CNC

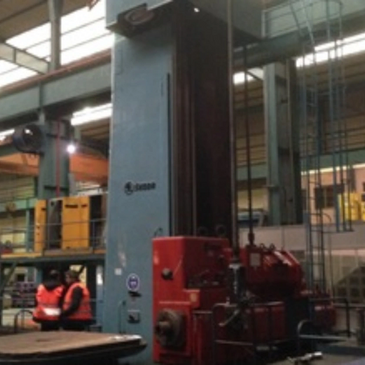

 Horizontal boring machine SKODA W200H

Specification:
Year of manufacture 1991
Spindle diameter, mm 200
Spindle cone, metric 120
Max. spindle axis torque, Nm 34300
Frame height, mm 550
Slides width, mm 2000
Rotary table SKODA E-20, mm 2000 x 2000
Max. table load, kg 25000
Quill dimensions, mm 450 x 450
Spindle travel (Z) (boring depth), mm 2000
Quill travel (W), mm 1600
Spindle head movement (Y), mm 3150
Column movement (X), mm 4000
Spindle turning speed range, rpm 0,8...630
Boring spindle feeds, mm/min 0,63...125 / 6,3...1250 / 20...4000
Total power required, kW 180
Machine dimensions, mm 5900 x 13800 x 8270
Machine weight, kg 84000

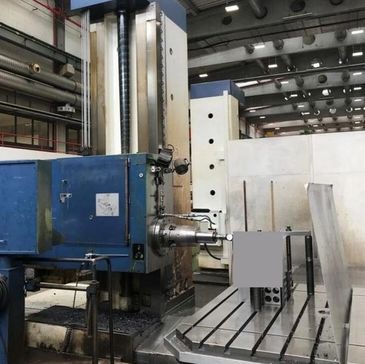

 TOS WHN 13.8C Boring Machine

Boring Machine

Specification:

Spindle diameter: 130 mm
X-travel: 3500 mm
Y-travel: 2000 mm
Z-travel: 1250 mm
W-axis: 800 mm
B-axis: 360 °
Control: Heidenhain
Type: TNC 355
Spindle taper: ISO 50
Transmission ratio: 4
Turning speeds: 1-1000 U/min
Surface area: 1800×1600 mm
Table load: 12000 kg
Feed: 1-6000 mm/min
Rapid movement: 6000 mm/min
Spindle: support bearing
Total power requirement: kW
Weight of the machine ca: 33 t
Dimensions of the machine ca: 7,8×5,7×4,9
